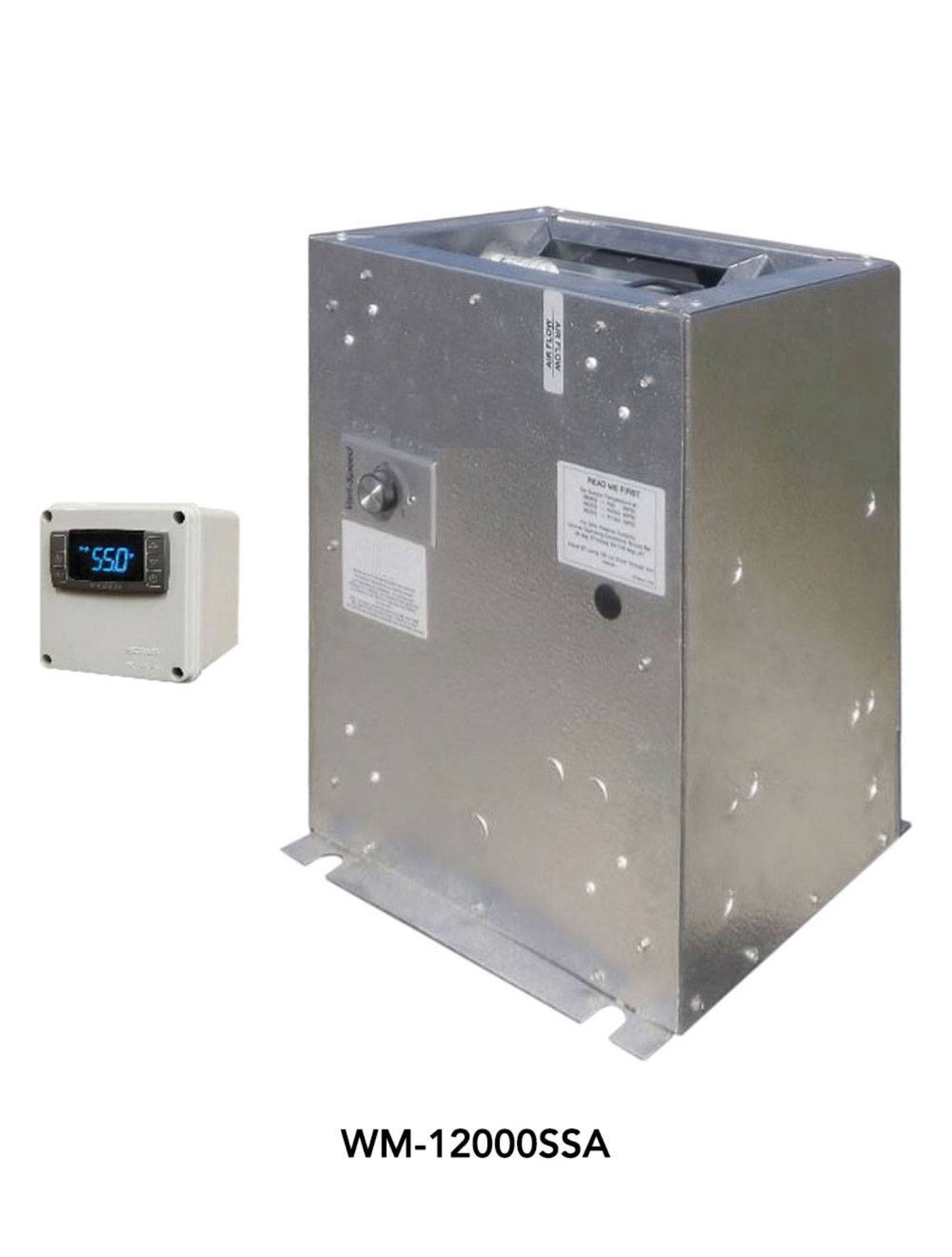

Vinotemp Wine-Mate Split Floor-Mounted Wine Cooling System - WM-12000SSA
WINE~MATE split floor-mounted cooling systems WM-12000SSA are designed to provide a cold environment between 50~65 °F with a humidity range within 50~75% RH for a properly insulated wine cellar. These temperature and humidity ranges are optimized for long term storage of wine like that in natural caves. SSA evaporator units are designed for mounting on the floor, making them an ideal choice for quick and convenient installation. SSA cooling systems consist of a remote condensing unit and an evaporator unit and they are connected by a liquid line and an insulated suction line. SSA condensing units can be located away from the wine cellars up to 75 ft so that noise and compressor vibration are isolated.
Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!
Note: Wine-Mate cooling systems cannot have both the Bottle Probe and Wi-Fi optional features plugged in at the same time. It can only be one or the other.
Add the Wi-Fi Thermostat. The thermostat helps maintain a wine cellar at perfect temperature for long term storage of wine.
Sound Level: 3 Feet from the Evaporator Unit in Cellar
(Click image to enlarge PDF)
Features
- Split Wine Cooling System provides floor-mounted installation.
- Outdoor enclosure is included with condensing unit.
- SSA evaporator units have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.
- SSA condensing units shall not be exposed to temperatures higher than 110°F or lower than 50°F.
- If the exhaust ambient temperature exceeds 110 °F, one size larger unit must be used.
- Low ambient kit must be used for below 50°F cold weather operation
- SSA split cooling systems have adjustable evaporator fan. Fan speed is adjustable because a speed controller is wired in line with the blower motors.
- Adjust evaporator fan speed through the knob to work with various wine racks or rooms to provide proper air flow.
Configurations
- Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring
- Optional Wine Bottle Probe: Provides the most accurate reading of your wine's temperature. The probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
- Our new digital controller provides 3 connections. One of them can be used as bottle probe, the other can be used for the alarm. Both bottle probe and alarm feature can be available at the same time.
-
Note: The bottle probe, heating, and quick chill functions are not compatible with WI-FI thermostat.
-
This unit can be configured for use with 220V/50Hz voltage. Please call us at 1-800-777-8466 to order this unit with any of the above mentioned options or non-standard configurations.
Specifications
- EVAPORATOR UNIT DIMENSIONS: 22-7/8"W x 18-1/4"D x 39-1/8"H
- EVAPORATOR UNIT WEIGHT: 58 lbs
- Evaporator Unit is ETL & NSF certified
- CONDENSING UNIT DIMENSIONS: 26"W x 22"D x 18"H
- CONDENSING UNIT WEIGHT: 135 lbs
- ELECTRICAL REQUIREMENTS: Evaporator Unit 115V 60Hz 2.5A, Condensing Unit 115V 60Hz 15A. The power cord must be plugged into a 3-prong grounding-type wall receptacle, grounded in accordance with the National Electrical Code, ANSI/NFPA 70 – latest edition and local codes and ordinances.
- COVERAGE SIZE: 3300 Cubic Feet
- NOISE: 65 dBA
- CFM: 1150
- BTU/h: 12000
Manuals and Other Resources
Click links to view
What Our Experts Think
-
High-Capacity Cooling – Designed for large wine cellars up to 3,000 cubic feet.
-
Split System Design – Reduces noise and vibration by placing the condenser in a separate location.
-
Floor-Mounted Installation – Ideal for cellars with limited wall or ceiling space.
-
Precise Temperature Control – Digital controls ensure stable and consistent cooling.
-
Humidity Management – Helps maintain proper moisture levels to protect wine quality.
-
Quiet & Efficient Operation – Engineered for minimal noise while delivering powerful cooling.
-
Durable & Reliable – Built with high-quality materials for long-term performance.
Q&A
Q: What is the Vinotemp Wine-Mate Split Floor-Mounted Wine Cooling System - WM-12000SSA?
A: It’s a powerful split-system wine cooling unit designed for large wine cellars, offering precise temperature and humidity control.
Q: What is the cooling capacity of this unit?
A: It is designed to cool wine cellars up to 3,000 cubic feet.
Q: How does a split system work?
A: The evaporator and condenser are installed separately to reduce noise and vibration inside the wine cellar while ensuring efficient cooling.
Q: What type of installation does it require?
A: It is a floor-mounted unit that should be professionally installed for optimal performance.
Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise climate management.
Q: Does this system regulate humidity?
A: Yes, it helps maintain proper humidity levels to protect wine corks and labels.
Q: Is this suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial wine storage applications.
Q: Does it operate quietly?
A: Yes, the split design minimizes noise inside the wine cellar, making it a quiet cooling solution.
Maintenance Tips
-
Regular Filter Cleaning – Clean or replace air filters every 3-6 months for optimal airflow.
-
Check Refrigerant Levels – Have a professional inspect for leaks or low refrigerant annually.
-
Ensure Proper Ventilation – Keep the unit free from obstructions to maintain efficiency.
-
Monitor Temperature & Humidity – Regularly check settings to ensure consistent wine storage conditions.
-
Inspect Electrical Connections – Tighten and clean wiring connections periodically.
-
Keep Coils Clean – Dust condenser and evaporator coils every 6 months to prevent overheating.
-
Test Drain Line – Ensure proper drainage to avoid water buildup.
-
Check for Unusual Noises – Investigate and address any vibrations or abnormal sounds.
-
Professional Servicing – Schedule annual maintenance for long-term reliability.
