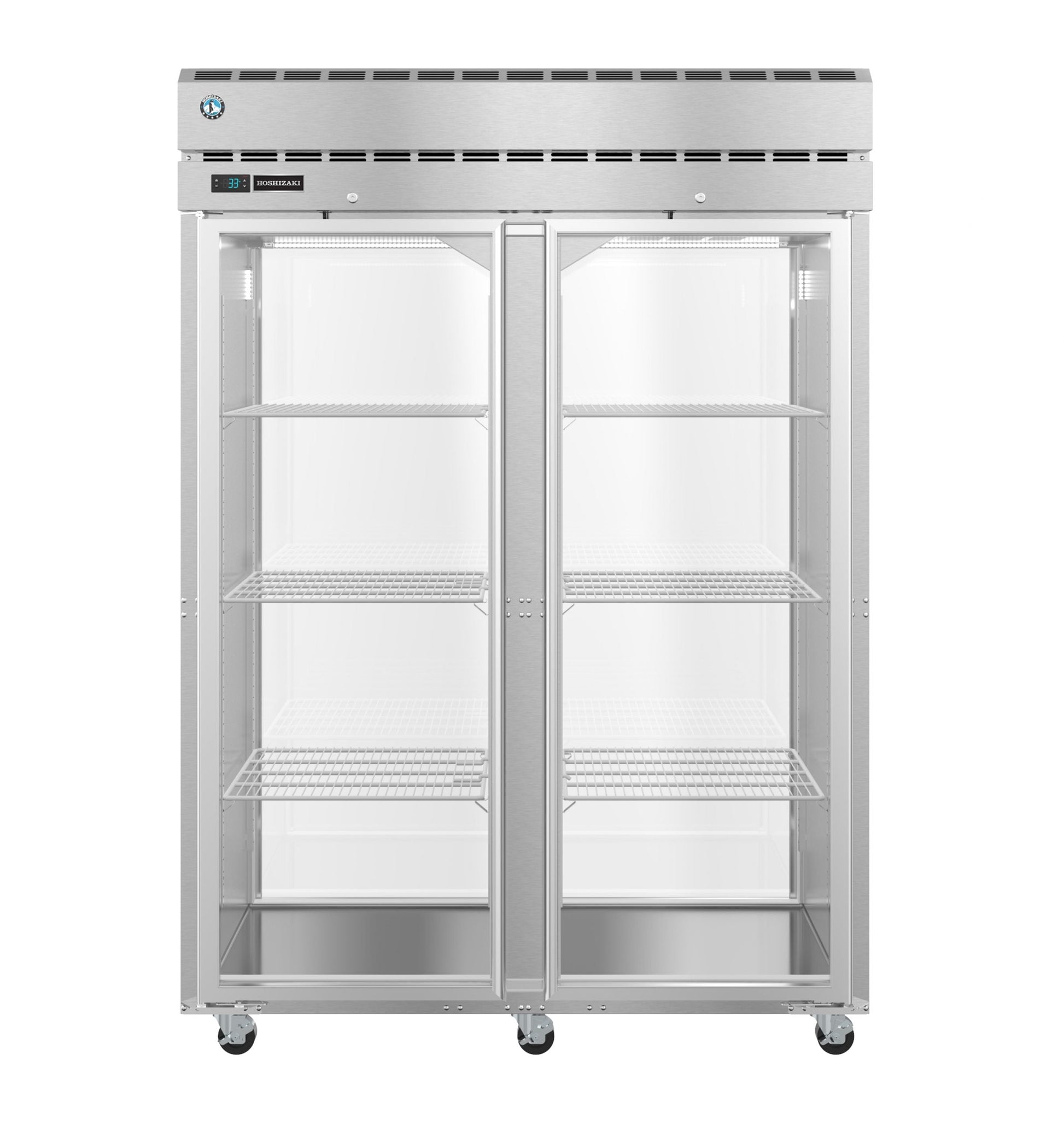

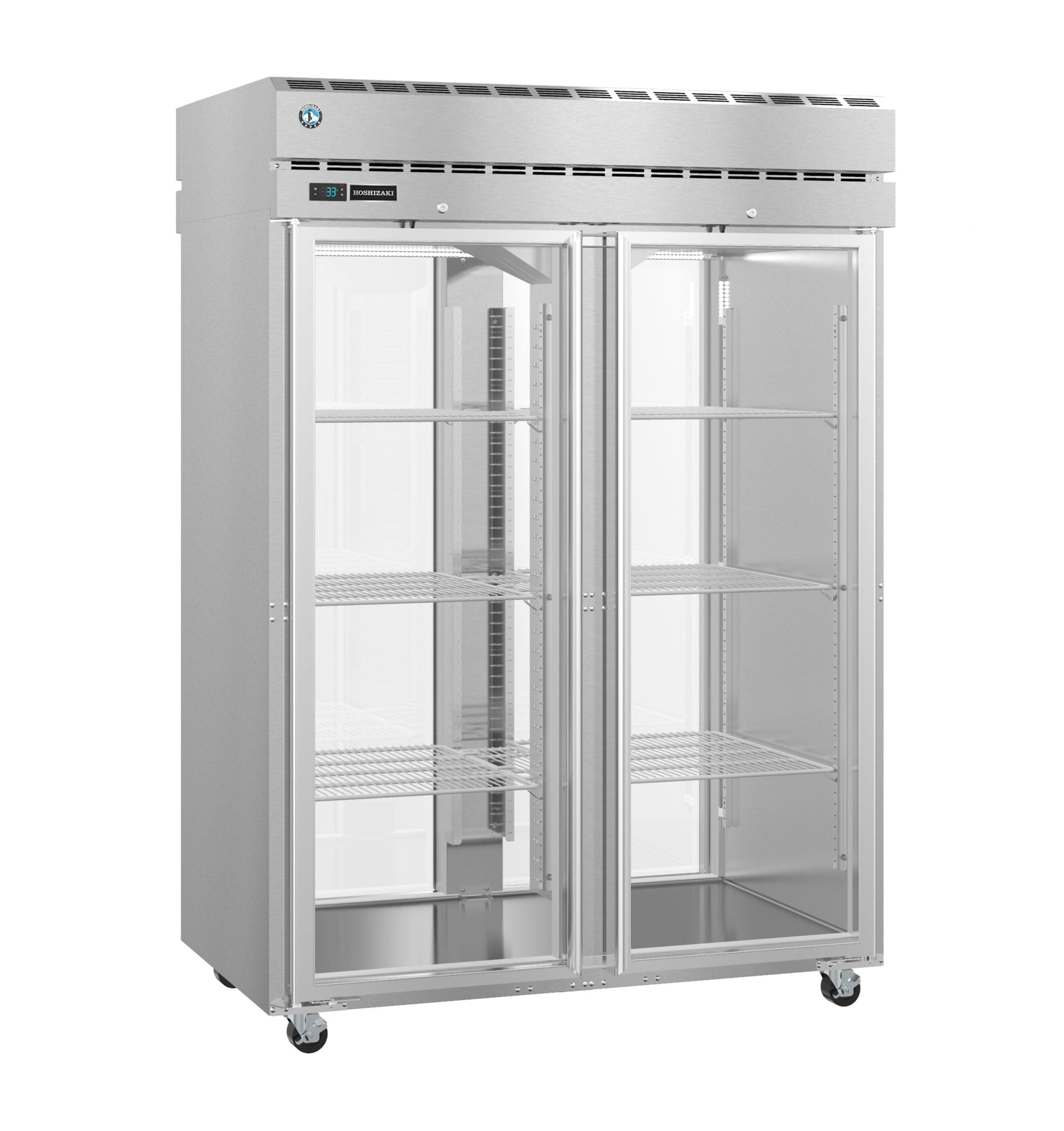

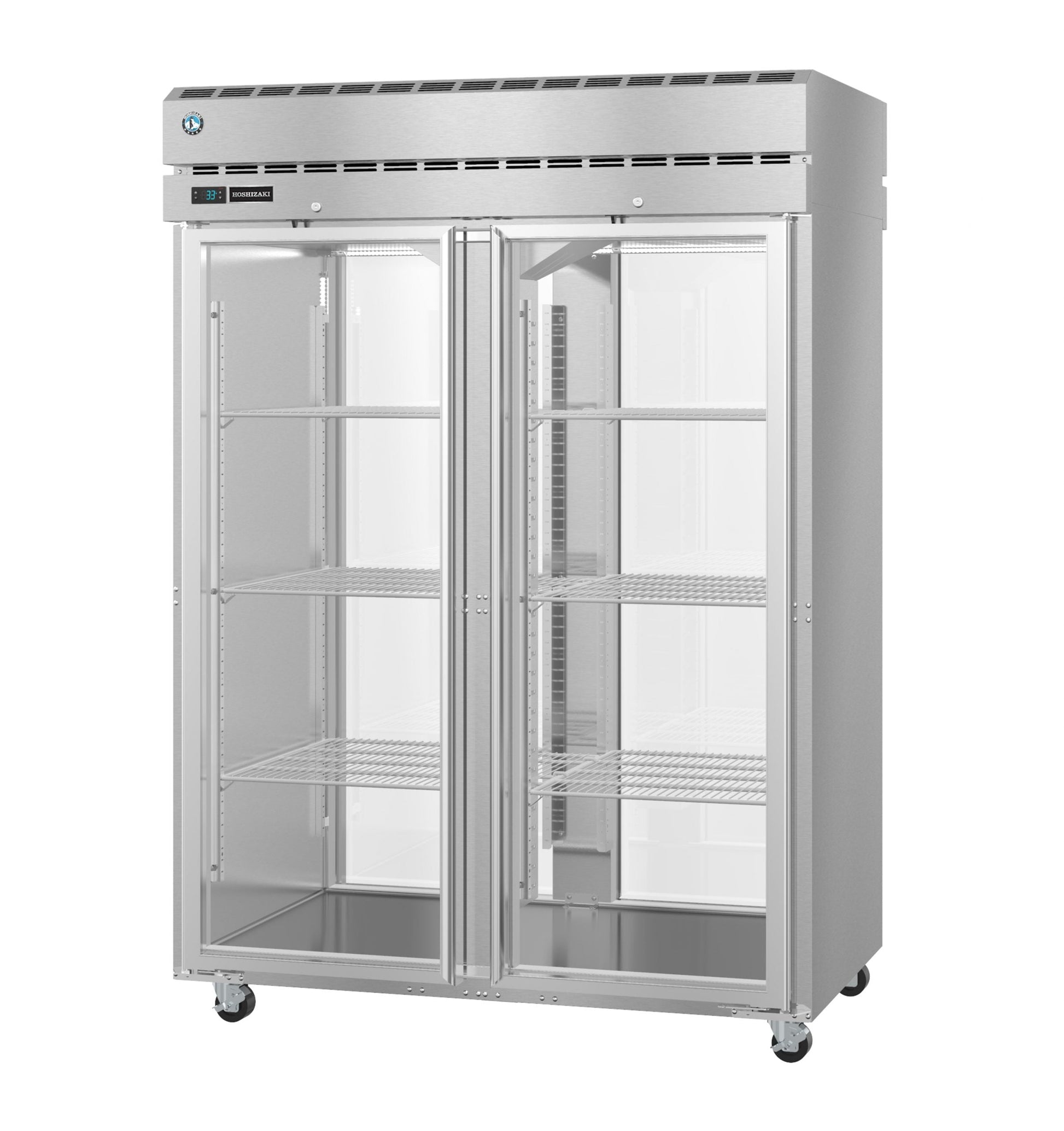

Hoshizaki PT2A-FG-FG | 55" Wide 4 Glass Door Top Mount Pass-Thru Refrigerator - PT2A-FG-FG
The PT2A-FG-FG Steelheart Series Pass Thru two section refrigerator with full glass doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 52.5 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens. The PT2A-FG-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The PT2A-FG-FG also includes Interior LED light bars are vertically mounted on each wall and one along the ceiling, (6) 4″ stem casters (3 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 6 kWh/day at 8 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor , and seven years compressor .
Features
- Dimensions: 55″ W x 37.75″ D x 79.5″ H
- Interior capacity of 52.5 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Full Glass Doors
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
- Interior LED light bars are vertically mounted on each wall and one along the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (6) 4″ Stem Casters (3 with brakes) are standard
- Includes 6 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Additional air filter
- Nominal Compres. of 1545 BTU/hr at 1/2 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 58″ L x 38.125″ D x 81″ H at 681 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |
PT2A-FG-FG |
| Weight |
681 lbs |
| Width |
55" |
| Depth |
37.75" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Pass-Thru |
| Size |
2 section |
| Door Quantity |
4 |
| Exterior Finish |
stainless steel front & sides |
| Compressor Location |
top mounted |
| Compressor HP |
1/2 HP |
| Capacity (Cu. Ft.) |
53 |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Hinge Location |
left / right |
| Door Style |
swing / full |
What our Experts Think
-
Pass-Thru Convenience: Double-sided glass doors allow easy access from both kitchen and service areas—ideal for high-efficiency workflows.
-
Spacious Interior: At 55" wide with 4 glass doors, provides excellent visibility and organized cold storage.
-
Top-Mount Compressor: Keeps components away from floor debris for longer-lasting performance and easier maintenance.
-
Stainless Steel Build: Commercial-grade durability with a sleek, easy-to-clean finish.
-
Energy Efficient: Glass doors and LED lighting help reduce energy waste while enhancing visibility.
Q&A
Q: What are the dimensions of the Hoshizaki PT2A-FG-FG?
A: It measures 55" wide, designed for efficient cold storage in busy kitchens.
Q: How many doors does it have?
A: Features four full-height glass doors—two front and two rear—for pass-thru access.
Q: What is a pass-thru refrigerator?
A: Allows access from both the front and back, ideal for kitchen-to-service workflows.
Q: What type of refrigeration system is used?
A: Top-mounted system for better airflow and easy cleaning.
Q: Is the unit ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® efficiency standards.
Q: What materials are used in construction?
A: Durable stainless steel sides with double-pane glass doors and an easy-to-clean interior.
Q: Does it include shelving?
A: Yes, comes with adjustable wire shelves for flexible storage.
Maintenance Tips
-
Clean Condenser Coils Monthly: Remove dust to maintain efficient cooling and prevent overheating.
-
Wipe Glass Doors & Stainless Surfaces Weekly: Use non-abrasive cleaners for visibility and surface protection.
-
Inspect Door Gaskets Monthly: Replace damaged seals to ensure proper temperature retention.
-
Monitor Internal Temperature: Maintain between 33°F–38°F for safe and efficient food storage.
-
Check Door Alignment & Hinges: Ensure smooth operation and secure sealing on all doors.
